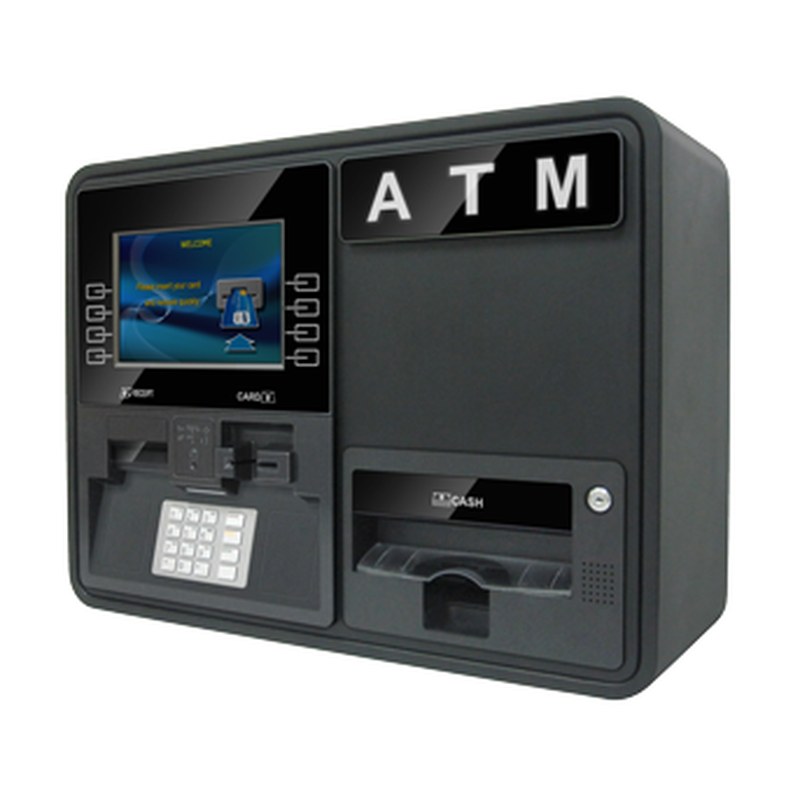

Genmega Onyx-W ATM

Genmega Onyx-W ATM

Product Description

Introducing the all new Onyx-W ATM. The Onyx-W can be installed securely as a Wall Mount or on a Counter Top. You’re installation options are only limited by your imagination.

Featuring a high-resolution 10.1” LED screen and light-up touch function keys along with 2” receipt printer, the Onyx-W uses the same modules and software capabilities and functions found in existing Genmega ATMs.

Dispensing is handled via a 1,000-note removable cassette which is secured inside its own internal vault system which is available with electronic lock and various adult locks.

Topper: Optional LED Topper Sign, Can accept custom inserts
Integrated Illuminated Sign: High Visiblility LED Sign, Attract Customerss
LCD Screen: 10.1 inch wide TFT LCD Panel, 1280×800 Resolution, Customizable Ad Screens, 8 Lighted-Touch function keys
Printer: 56mm (2″ standard)
PIN Entry Device: 16-key alphanumeric keypad, PCI 3.0 Certified EPP (Encrypting Pin Pad), LED Illumination
Communication: 556Kbps dial-up modem, TCP/IP Ethernet connection – Onboard SSL
CPU: Cortex-A8 CPU (800MHz), DDR2 256MB SRAM memory, 512MB Flash Memory, Windows CE 6.0
Card Reader: EMV (DIP Type)
ADA: Voice Guidance, Lighted Transaction Guidance, Accessible Keypad Layout
Security: Electronic Lock, A-series Lock, Cencon Lock
Cash Dispenser: 1000 Note Removable Cassette (WCDU) or 2000 Note Removeable Cassette (WCDU 2K)

Height: 19.7" (500 mm)
Width: 26.8" (681 mm)
Depth: 10.4" (264 mm)
Weight: 121lbs (55 kg)

Power Requirements
AC 110/220 V ±10%, 50/60 Hz, 145 Watts

$2820-$4145 USD
*Price based on configuration
